Sanduuqa guryaha ee gudaha ee Helical ee loogu talagalay dhimista meeraha Sawirka La Soo Bandhigay

Sharaxaad Gaaban:

Sanduuqa guryaha ee gudaha ee Helical ee loogu talagalay dhimista meeraha gaarka loo leeyahay
Qalabkan gudaha ee helical gear-ka ah waxaa loo isticmaalay hoos u dhigista meeraha. Module waa 1, ilko: 108

Qalabka: 42CrMo oo lagu daray QT,

Daaweynta Kulaylka: Nitriding

Saxnaanta: DIN6

Noo soo dir emayl

Faahfaahinta Badeecada

Calaamadaha Alaabta

Faahfaahinta alaabta

Nooca noocan oo kale ahqalabka gudaha Badanaa waxay u baahan yihiin wax ka beddelka astaanta, saxnaantuna waa ISO6-7, ka hor inta aan la dhoofin, waxaan macaamiisha siin doonnaa warbixinnadan hoos ku qoran si aan u hubinno faahfaahinta qalabka giraanta helical-ka si loo hubiyo in dhammaantood si cad loo fahmay oo ay wanaagsan yihiin in la raro.

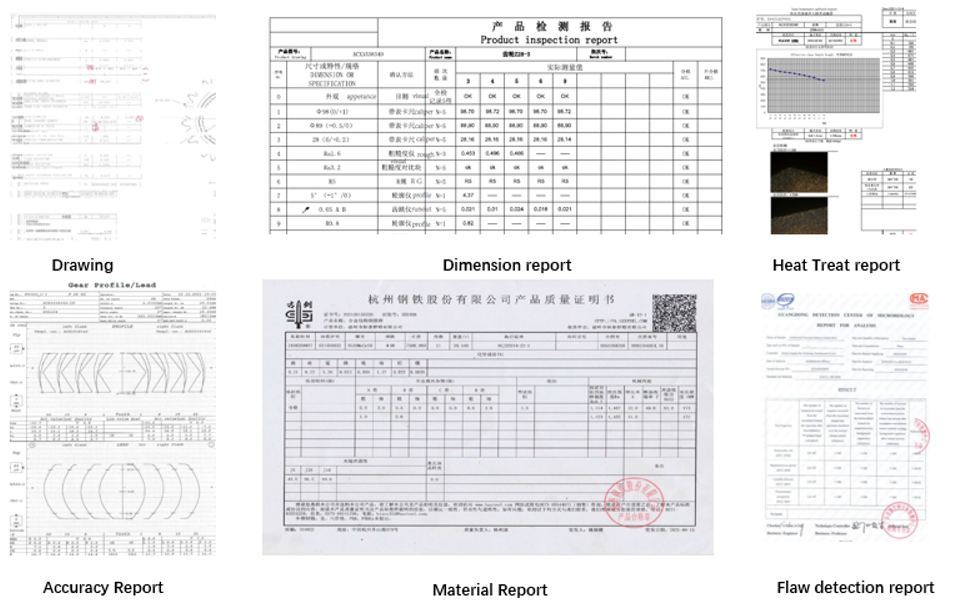

1) Sawir xumbo ah

2)Dwarbixinta waxqabadka

3)HWarbixinta Cun Daawaynta Kahor Daaweynta Kulaylka

4)HWarbixinta Cun Daawaynta Kadib Daawaynta Kulaylka

5)Mwarbixin heer sare ah

6)Awarbixinta hubinta

7)Pictures iyo dhammaan fiidiyowyada tijaabada ah sida runout, Cylindricity iwm.

8) Warbixinnada kale ee tijaabada ah sida shuruudaha macaamiisha sida warbixinta ogaanshaha cilladaha

Warshadda Wax Soo Saarka

Waxaan haynaa saddex khad oo wax soo saar ah oo loogu talagalay geerka gudaha, sidoo kale waxaa loogu yeeraa geerka giraanta sida geerka giraanta ee spur iyo geerka giraanta ee helical, badanaa geerka giraanta ee spur waxaa sameyn doona mashiinnadayada broaching si ay u buuxiyaan saxnaanta ISO8-9, haddii broaching iyo shiidid ay buuxin karto saxnaanta ISO5-6, si kastaba ha ahaatee geerka giraanta helical waxaa sameyn doona mashiinnadayada skiving-ka awoodda leh, kuwaas oo si fiican u dabooli kara saxnaanta ISO5-6, taas oo si joogto ah u ahayd geerka giraanta helical-ka yar yar.

Aqoon-is-weydaarsiga Hobbing, Milling iyo Qaabaynta Qalabka

Habka Wax Soo Saarka

Kormeerka

Waxaan qalabaynnay qalab kormeer oo buuxa oo loogu talagalay noocyada qalabka dhululubada ah sida hexagon, Zeiss 0.9mm, Kinberg CMM, Klingberg CMM, Klingberg P100/p65/p26 XARUNTA CABBIRKA GEAR, Gleason 1500GMM, mitirka qallafsanaanta ee Jarmalka Marr, Profiler-ka Mitirka qallafsanaanta, Profiler-ka, Qalabka Cabbiraadda Dhererka iwm., Klingberg
