Shiinaha 2M 20 warshad alwaax ka sameysan gear iyo saarayaasha |Belon

2M 20 ilkood qalab bevel ah oo la soo bandhigay Sawirka

Sharaxaad Gaaban:

Qalabka 2M 20 ee ilkuhu waa nooc gaar ah oo ka mid ah qalabka bevel-ka oo leh module 2 milimitir ah, 20 ilkood ah, iyo dhexroor goobaabin ah oo qiyaastii ah 44.72 millimitir.Waxa loo adeegsadaa codsiyada halka ay tahay in awooda lagu kala qaado inta u dhaxaysa biraha xagal iskaga goosha.

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

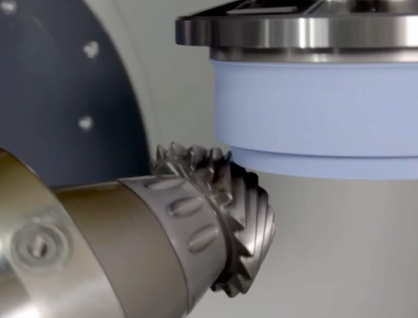

Shirkaddu waxay soo bandhigtay Gleason Phoenix 600HC iyo 1000HC mashiinnada wax lagu shiilo, kuwaas oo farsamayn kara Gleason shrink ilkaha, Klingberg iyo qalabka kale ee sare;iyo Phoenix 600HG mishiinka shiida, 800HG mishiinka shiidi, 600HTL mishiinka shiidi mashiinka, 1000GMM, 1500GMM qalabka wax baadha samayn kartaa wax soo saarka xiran-loop, hagaajinta xawaaraha processing iyo tayada alaabta, gaabin wareegga processing, iyo gaaro gaarsiinta degdeg ah.

Warbixinno noocee ah ayaa la siin doonaa macaamiisha ka hor inta aan la dhoofin si ay u shiido qalabyada waaweyn ee spiraal bevel?
1) Sawirka xumbo
2) Warbixinta cabbirka
3) Shahaadada agabka
4) Warbixinta daaweynta kulaylka
5) Warbixinta Imtixaanka Ultrasonic (UT)
6) Warbixinta Tijaabada Qaybta Magnetka (MT)
Warbixinta tijaabada Meshing

Warbixinada

Waxaan bixin doonaa faylal tayo buuxa leh ka hor inta aan la dhoofin si loo eego macaamiisha iyo oggolaanshaha.
1) Sawirka xumbo
2) Warbixinta cabbirka
3) Shahaadada agabka
4) Warbixinta daaweynta kulaylka
5)Warbixin sax ah
6) Sawiro, muuqaalo

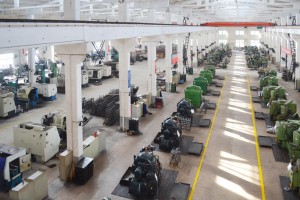

Warshadda Wax-soo-saarka

Waxaan ku wareejinaa aag dhan 200000 mitir oo laba jibbaaran , sidoo kale ku qalabaysan wax soo saarka hore iyo qalabka kormeerka si loo daboolo baahida macaamiisha .Waxaan soo bandhignay cabbirka ugu weyn, Shiinaha ugu horreeya ee gear-gaar ah Gleason FT16000 xarunta mashiinnada shan-dhidibka ah tan iyo iskaashiga ka dhexeeya Gleason iyo Holler.

→ Module kasta

→ Tiro kasta oo Ilkaha ah

→ Saxnaanta ugu sareysa DIN5

→ Waxtarka sare, saxnaanta sare

Keenista wax soo saarka riyada, dabacsanaanta iyo dhaqaalaha dufcad yar.

aqoon-is-weydaarsiga wax-soo-saarka ee loo yaqaan 'spiral gears hypoid'

Habka wax soo saarka

Been abuurasho

leexashada Lathe

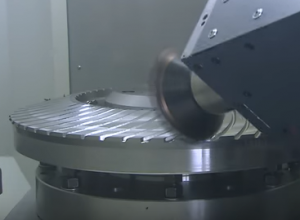

Milling

Daawaynta kulaylka ee gears bevel lapped

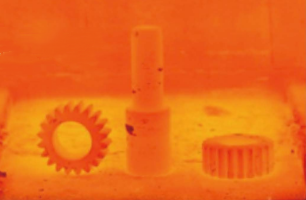

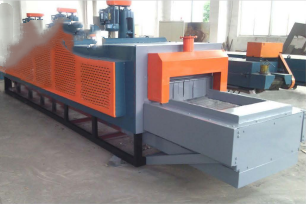

Daaweynta kulaylka

OD/ID shiidi

Dhabarka

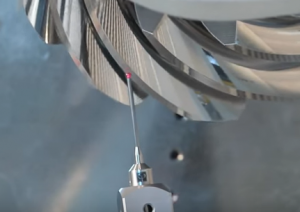

Kormeer

Waxaan ku qalabaysan nahay qalabka kormeerka sare sida Brown & Sharpe mashiinka cabbiraadaha saddex-iskudubarid, Colin Begg P100/P65/P26 xarunta cabbiraadda, German Marl cylindricity qalab, Japan roughness Tijaabada, Profiler indhaha, projector, dhererka mashiinka cabbirka iwm si loo hubiyo in finalka si sax ah oo dhamaystiran .
